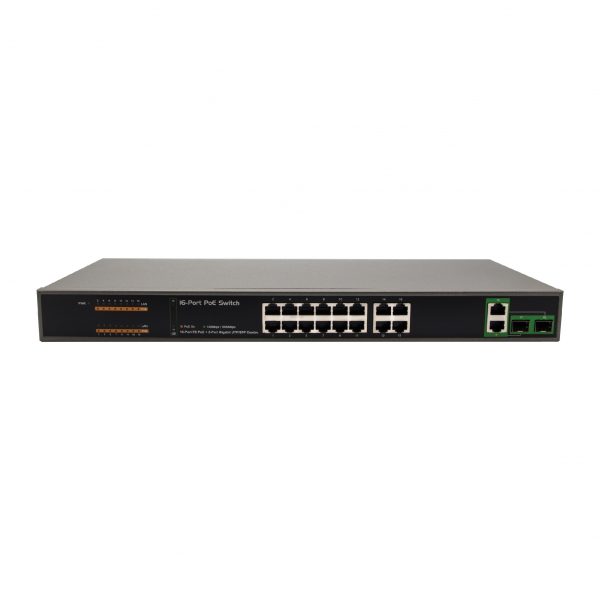

VDC-POE SWITCH 16 PORT + 2GBE 10/100M-POE SPE1816GS
16Port PoE+1Gigabit TP+1SFP/IEEE802.3at/100Mbps
- Up to 30W of Power on
- Compatible with All IEEE 802.3af/at or Legacy
- Safe: Low Power Devices Receive Only the Power They Need
- Safe and Reliable Power to WLAN Access Points
- Automatic Detection and Protection of Non–standard Ethernet Terminals
- Supports 10/100 Base-T applications
- Compact Design Fits Easily in WLAN Access
- Plug-and-Play no configuration required
- Internal power supply
- Save up to 83% power with Green Technology
- Description
- Additional information
- Catalogue
Description
Pass Through Data Rates
- 16-Port 10/100Mbps
Standards
- IEEE 802.3af/at
LED Indicators
- Power (Green)
- PoE In-Use (Orange)
- 10/100 LNK / ACT(Green)
PoE Power Output
- Per Port 54V DC, 350ma. Max. 15.4 Watts
PoE Power Supply Type
- 1/2(+), 3/6(-), Mode-A, End-Span
Power Consumption
- 250 Watts maximum
Power Requirement
- 100~240V AC, 50-60 Hz
Dimensions: (W x D x H) / Weight
- 440 x 210 x 44 mm, 4kg
Temperature
- Operating: 0 ~ 50 Degree C
- Storage: -10 ~ 70 Degree C
- Relative Humidity: 20 ~ 95% (non-condensing)
Safety Approvals
- CE, FCC, EN 60950:2006
Certifications
- RoHS Compliant, CE/FCC
Additional information
| Weight | 1.97 kg |
|---|
