VDC-POE INJECTOR 1 PORT 1000M SPI2401G

  • Description

Description

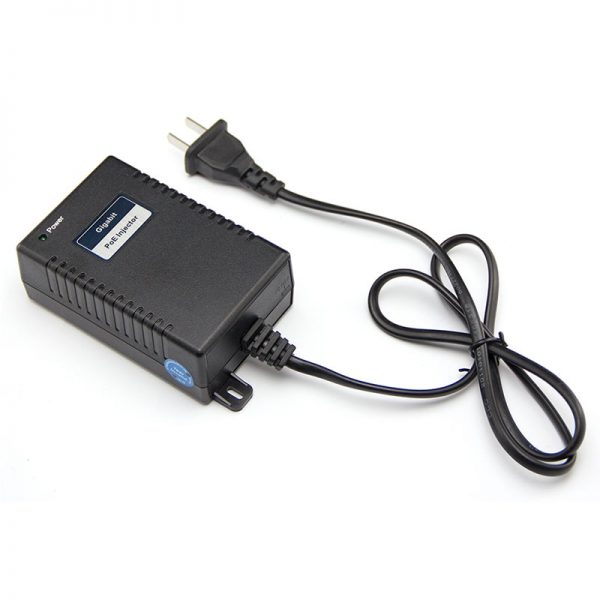

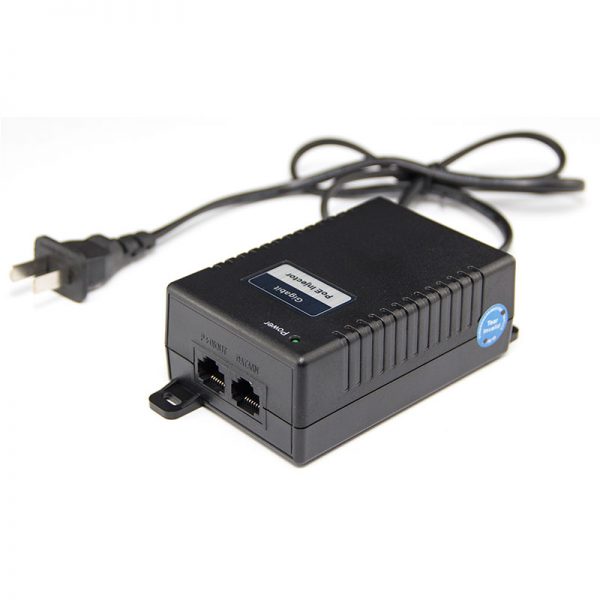

ALMA SPI2401G Passive PoE Injector

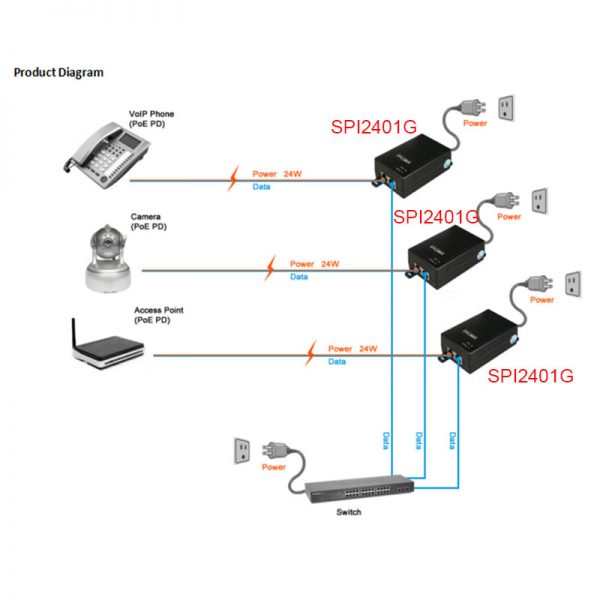

This is a Power over Ethernet Injector with one Ethernet Input (data only) port and one Output (data + power) port that is designed for small or medium network environments. This product can convert standard 100~240VAC power into low voltage DC that runs over existing LAN cable to power up the network device with PoE function directly. installing networking products such as Access Points and IP cameras can easily be performed. Wireless device deployments are easily located without the need for power outlets and network administrators don’t need to use AC power adapters anymore.

Key Features

  • Minimize the need for a bulky power adapter and power line
  • Delivering power and data to equipment via a single Ethernet cable
  • High safety with surge protection
  • Remote power feeding up to 100 meters
  • PnP, Light Weight and compact size
  • Unique interlocking feature for easy installation



Specifications

  • Standard Compliance
    • IEEE 802.3 10 BaseT
    • IEEE 802.3u 100Base Tx
    • RJ45 10/100Mbps
  • PoE Power OutPut
    • Pin Assignment and Polarity : 4/5 (+), 7/8 (-)
    • Output Power Voltage : DC24 VDC
    • Power : 24 Watts Max.
    • Input Power AC Input Voltage : 100~240VAC
    • Requirements AC Input Current : <0.7A @ 100~240VAC
    • AC Frequency : 50~60 Hz
  • Dimensions (L x W x H) / Weight : 98.6 x  64.5 x 38.2mm / 128.9g
  • Indicators : AC Power (Orange)
  • Environmental Conditions
    • Operating Temperature : 0~45 Degree Celcius
    • Storage Humidity : Max 95%, Non-condensing
